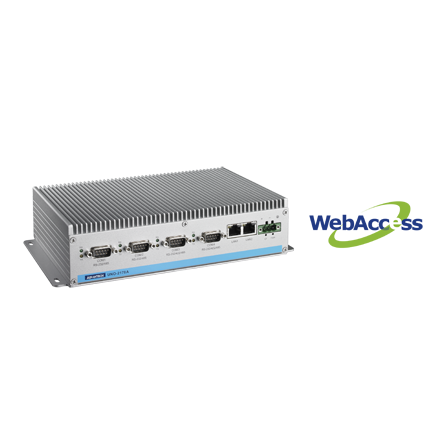

WA-UNO2178

Intel? Atom? D510 Compact SCADA Server with 600/5,000 Tags WebAccess

Main Features

Bundled with Advantech WebAccess, browser based HMI/SCADA software
Onboard Intel Atom D510 processors
2 x 10/100/1000Base-T RJ-45 ports, 6 x USB 2.0 ports
Built-in Windows® 7 Embedded
Onboard system status LED indicators
Front-accessible CF slot
Supports Boot from LAN function
2 x Mini PCIe slots with 1 x SIM slot support
Fanless design with no internal cabling
Isolation between chassis and power ground
Supports wide operating temperatures from - 10 ~ 70°C
IP40 ingress protection
Supports plug-in cards (1 x PCI-104 and 1 x PC/104+) with additional daughterboard expansion
Supports 8 x COM ports
Supports arbitrary baud rates
數據表(PDF) 技術資料下載

規格表

		WA-UNO2178-C50HE	WA-UNO2178-C600E	WA-UNO2178-E50HE	WA-UNO2178-E600E	WA-UNO2178- T50HE	WA-UNO2178- T600E
Dashboard	Cross Browser and Platform	No	No	No	No	No	No
	Number of Built-in Widget	No	No	No	No	No	No
	Open Widget Interface	No	No	No	No	No	No
Graphics	Multi-touch Gesture	Yes	Yes	Yes	Yes	Yes	Yes
Group Trend Log	Alarm Groups per SCADA	9999	9999	9999	9999	9999	9999
Group Trend Log	Number of data logging	Number of IO tags license x 2	Number of IO tags license x 2	Number of IO tags license x 2	Number of IO tags license x 2	Number of IO tags license x 2	Number of IO tags license x 2
I/O Interface	LAN	2 x 10/100/1000Base-T RJ-45 ports (Built-in boot ROM in flash BIOS)	2 x 10/100/1000Base-T RJ-45 ports (Built-in boot ROM in flash BIOS)	2 x 10/100/1000Base-T RJ-45 ports (Built-in boot ROM in flash BIOS)	2 x 10/100/1000Base-T RJ-45 ports (Built-in boot ROM in flash BIOS)	2 x 10/100/1000Base-T RJ-45 ports (Built-in boot ROM in flash BIOS)	2 x 10/100/1000Base-T RJ-45 ports (Built-in boot ROM in flash BIOS)
I/O Interface	USB	6 x USB 2.0	6 x USB 2.0	6 x USB 2.0	6 x USB 2.0	6 x USB 2.0	6 x USB 2.0
Open Connectivity	BACnet Server	No	No	No	No	No	No
	DDE Server	Yes	Yes	Yes	Yes	Yes	Yes
	Modbus Server	Yes	Yes	Yes	Yes	Yes	Yes
	ODBC and SQL Query	Yes	Yes	Yes	Yes	Yes	Yes
	OPC DA/UA Server	Yes	Yes	Yes	Yes	Yes	Yes
Others	Support IPv6	Yes	Yes	Yes	Yes	Yes	Yes
Others	WebAccess Express	Yes	Yes	Yes	Yes	Yes	Yes
Scheduler	Device Loop Group	9999	9999	9999	9999	9999	9999
	Equipment Group	9999	9999	9999	9999	9999	9999
	Holiday Configuration Group	9999	9999	9999	9999	9999	9999
	Scheduler Reservation Group	9999	9999	9999	9999	9999	9999
	Time Zone Group	9999	9999	9999	9999	9999	9999
Web-enabled Integration	Google Maps and GPS Location Tracking	Yes	Yes	Yes	Yes	Yes	Yes
I/O Interface	Serial Ports	2 x RS-232/485 (COM1-2), 2 x RS-232/422/485 w/ 128kB FIFO (COM A-B), 4 x RS-232/485 from DB25 print port (COM3-6)	2 x RS-232/485 (COM1-2), 2 x RS-232/422/485 w/ 128kB FIFO (COM A-B), 4 x RS-232/485 from DB25 print port (COM3-6)	2 x RS-232/485 (COM1-2), 2 x RS-232/422/485 w/ 128kB FIFO (COM A-B), 4 x RS-232/485 from DB25 print port (COM3-6)	2 x RS-232/485 (COM1-2), 2 x RS-232/422/485 w/ 128kB FIFO (COM A-B), 4 x RS-232/485 from DB25 print port (COM3-6)	2 x RS-232/485 (COM1-2), 2 x RS-232/422/485 w/ 128kB FIFO (COM A-B), 4 x RS-232/485 from DB25 print port (COM3-6)	2 x RS-232/485 (COM1-2), 2 x RS-232/422/485 w/ 128kB FIFO (COM A-B), 4 x RS-232/485 from DB25 print port (COM3-6)
General	Certifications	Energy Star, CE, FCC Class A, UL, CCC, C-Tick Class A, BSMI	Energy Star, CE, FCC Class A, UL, CCC, C-Tick Class A, BSMI	Energy Star, CE, FCC Class A, UL, CCC, C-Tick Class A, BSMI	Energy Star, CE, FCC Class A, UL, CCC, C-Tick Class A, BSMI	Energy Star, CE, FCC Class A, UL, CCC, C-Tick Class A, BSMI	Energy Star, CE, FCC Class A, UL, CCC, C-Tick Class A, BSMI
	Dimensions	255 x 152 x 59 mm (10" x 6.0" x 2.3")	255 x 152 x 59 mm (10" x 6.0" x 2.3")	255 x 152 x 59 mm (10" x 6.0" x 2.3")	255 x 152 x 59 mm (10" x 6.0" x 2.3")	255 x 152 x 59 mm (10" x 6.0" x 2.3")	255 x 152 x 59 mm (10" x 6.0" x 2.3")
	Enclosure Housing	Aluminum + SECC	Aluminum + SECC	Aluminum + SECC	Aluminum + SECC	Aluminum + SECC	Aluminum + SECC
	Industrial Grounding	Isolation between chassis and power ground	Isolation between chassis and power ground	Isolation between chassis and power ground	Isolation between chassis and power ground	Isolation between chassis and power ground	Isolation between chassis and power ground
	Mounting	DIN-rail, Wallmount, VESA	DIN-rail, Wallmount, VESA	DIN-rail, Wallmount, VESA	DIN-rail, Wallmount, VESA	DIN-rail, Wallmount, VESA	DIN-rail, Wallmount, VESA
	OS Support	Windows 7 Embedded	Windows 7 Embedded	Windows 7 Embedded	Windows 7 Embedded	Windows 7 Embedded	Windows 7 Embedded
	Power Consumption	16 W (Typical)	16 W (Typical)	16 W (Typical)	16 W (Typical)	16 W (Typical)	16 W (Typical)
	Power Requirement	9 ~ 36 VDC (e.g +24 V @ 1.5 A) (Min. 36 W), ATX	9 ~ 36 VDC (e.g +24 V @ 1.5 A) (Min. 36 W), ATX	9 ~ 36 VDC (e.g +24 V @ 1.5 A) (Min. 36 W), ATX	9 ~ 36 VDC (e.g +24 V @ 1.5 A) (Min. 36 W), ATX	9 ~ 36 VDC (e.g +24 V @ 1.5 A) (Min. 36 W), ATX	9 ~ 36 VDC (e.g +24 V @ 1.5 A) (Min. 36 W), ATX
	System Design	Fanless design with no internal cabling	Fanless design with no internal cabling	Fanless design with no internal cabling	Fanless design with no internal cabling	Fanless design with no internal cabling	Fanless design with no internal cabling
System Hardware	CPU	Intel Atom D510 Dual Core 1.66 GHz	Intel Atom D510 Dual Core 1.66 GHz	Intel Atom D510 Dual Core 1.66 GHz	Intel Atom D510 Dual Core 1.66 GHz	Intel Atom D510 Dual Core 1.66 GHz	Intel Atom D510 Dual Core 1.66 GHz
	Display	DB15 VGA connector up to 2048 x 1536	DB15 VGA connector up to 2048 x 1536	DB15 VGA connector up to 2048 x 1536	DB15 VGA connector up to 2048 x 1536	DB15 VGA connector up to 2048 x 1536	DB15 VGA connector up to 2048 x 1536
	Indicators	LEDs for Power, CF, LAN (Active, Status), Serial (Tx, Rx)	LEDs for Power, CF, LAN (Active, Status), Serial (Tx, Rx)	LEDs for Power, CF, LAN (Active, Status), Serial (Tx, Rx)	LEDs for Power, CF, LAN (Active, Status), Serial (Tx, Rx)	LEDs for Power, CF, LAN (Active, Status), Serial (Tx, Rx)	LEDs for Power, CF, LAN (Active, Status), Serial (Tx, Rx)
	Keyboard/Mouse Ports	1 x PS/2	1 x PS/2	1 x PS/2	1 x PS/2	1 x PS/2	1 x PS/2
	Memory	2 GB DDR2 SDRAM built-in	2 GB DDR2 SDRAM built-in	2 GB DDR2 SDRAM built-in	2 GB DDR2 SDRAM built-in	2 GB DDR2 SDRAM built-in	2 GB DDR2 SDRAM built-in
	Storage	2.5" SATA , 1TB 5400RPM	2.5" SATA , 1TB 5400RPM	2.5" SATA , 1TB 5400RPM	2.5" SATA , 1TB 5400RPM	2.5" SATA , 1TB 5400RPM	2.5" SATA , 1TB 5400RPM
Processor System	Watchdog Timer	1~255 sec (System)	1~255 sec (System)	1~255 sec (System)	1~255 sec (System)	1~255 sec (System)	1~255 sec (System)
WebAccess Version 8.0 Professional	Action Logs	5000	5000	5000	5000	5000	5000
	Alarm Logs	5000	5000	5000	5000	5000	5000
	Graphics	Unlimited Number of Graphic Pages, Global Tag Source	Unlimited Number of Graphic Pages, Global Tag Source	Unlimited Number of Graphic Pages, Global Tag Source	Unlimited Number of Graphic Pages, Global Tag Source	Unlimited Number of Graphic Pages, Global Tag Source	Unlimited Number of Graphic Pages, Global Tag Source
	I/O Tag Number	600/5000	600/5000	600/5000	600/5000	600/5000	600/5000
	Internal Tag Number	600/5000	600/5000	600/5000	600/5000	600/5000	600/5000
	Number of Data Logging	Number of I/O Tags License x 2	Number of I/O Tags License x 2	Number of I/O Tags License x 2	Number of I/O Tags License x 2	Number of I/O Tags License x 2	Number of I/O Tags License x 2
	Others	SCADA Redundancy, TclScript / VBScript / Jscript Language, Data Transfer and Reporting, ODBC and SQL Query, Device Redundancy	SCADA Redundancy, TclScript / VBScript / Jscript Language, Data Transfer and Reporting, ODBC and SQL Query, Device Redundancy	SCADA Redundancy, TclScript / VBScript / Jscript Language, Data Transfer and Reporting, ODBC and SQL Query, Device Redundancy	SCADA Redundancy, TclScript / VBScript / Jscript Language, Data Transfer and Reporting, ODBC and SQL Query, Device Redundancy	SCADA Redundancy, TclScript / VBScript / Jscript Language, Data Transfer and Reporting, ODBC and SQL Query, Device Redundancy	SCADA Redundancy, TclScript / VBScript / Jscript Language, Data Transfer and Reporting, ODBC and SQL Query, Device Redundancy
	Web Client	1024	1024	1024	1024	1024	1024
