Advantech WebAccess

基于瀏覽器的HMI/SCADA 軟件

Main Features

首家完全基于瀏覽器而設計的網際組態軟件
基于web瀏覽器的全功能客戶端監控與現場同步
強大的遠程診斷，維護功能
中央集成數據庫服務器
分布式結構體系
全局節點的時間同步功能
多疊式網絡安全體系
免費的客戶端授權
免費的開發環境，一次擁有，無限開發
與上層管理系統的無縫接軌，輕松實現管控一體化
Email方式發送報警信息與報表

數據表(PDF) 技術資料下載

規格表

		WA-P80-U075E	WA-P80-U150E	WA-P80-U15HE	WA-P80-U20KE	WA-P80-U300E	WA-P80-U50HE	WA-P80-U600E	WA-P80-U64KE

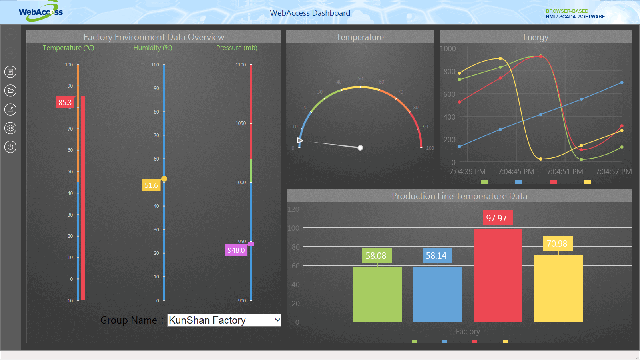

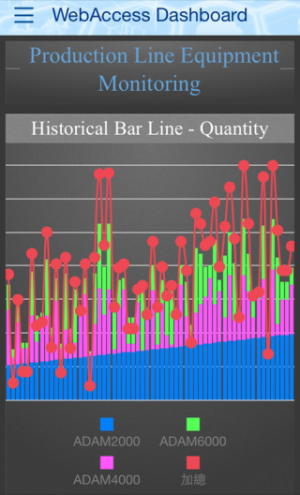

Dashboard	Cross Browser and Platform	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
	Number of Built-in Widget	37	37	37	37	37	37	37	37
	Open Widget Interface	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
Web-enabled Integration	Google Maps and GPS Location Tracking	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
Advantech WebAccess Professional	I/O Tag Number	75	150	1500	20000	300	5000	600	Unlimited
	Internal Tag Number	75	150	1500	20000	300	5000	600	Unlimited
	Web Client	1024	1024	1024	1024	1024	1024	1024	1024
	Alarm Logs	5000	5000	5000	5000	5000	5000	5000	5000
	Action Logs	5000	5000	5000	5000	5000	5000	5000	5000
Graphics	Number of Graphic Pages	Unlimited	Unlimited	Unlimited	Unlimited	Unlimited	Unlimited	Unlimited	Unlimited
	Variables per Graphic Pages	4000	4000	4000	4000	4000	4000	4000	4000
	Tag Source	Global	Global	Global	Global	Global	Global	Global	Global
	Multi-touch Gesture	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
Group Trend Log	Number of data logging	Number of IO tags license x 2	Number of IO tags license x 2	Number of IO tags license x 2	Number of IO tags license x 2	Number of IO tags license x 2	Number of IO tags license x 2	Number of IO tags license x 2	Number of IO tags license x 2
Group Trend Log	Alarm Groups per SCADA	9999	9999	9999	9999	9999	9999	9999	9999
Receipt	Recipes per Project	Unlimited	Unlimited	Unlimited	Unlimited	Unlimited	Unlimited	Unlimited	Unlimited
	Unit per Recipe	999	999	999	999	999	999	999	999
	Item per Unit	999	999	999	999	999	999	999	999
Scheduler	Holiday Configuration Group	9999	9999	9999	9999	9999	9999	9999	9999
	Time Zone Group	9999	9999	9999	9999	9999	9999	9999	9999
	Device Loop Group	9999	9999	9999	9999	9999	9999	9999	9999
	Equipment Group	9999	9999	9999	9999	9999	9999	9999	9999
	Scheduler Reservation Group	9999	9999	9999	9999	9999	9999	9999	9999
Open Connectivity	Modbus Server	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
	BACnet Server	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
	ODBC and SQL Query	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
	OPC DA/UA Server	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
	DDE Server	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
Others	Centralized logs on project node via ODBC	Yes node via ODBC	Yes node via ODBC	Yes node via ODBC	Yes node via ODBC	Yes node via ODBC	Yes node via ODBC	Yes node via ODBC	Yes node via ODBC
	SCADA Redundancy	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
	Script language	TclScript /VBScript /JScript	TclScript /VBScript /JScript	TclScript /VBScript /JScript	TclScript /VBScript /JScript	TclScript /VBScript /JScript	TclScript /VBScript /JScript	TclScript /VBScript /JScript	TclScript /VBScript /JScript
	Data Transfer	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes

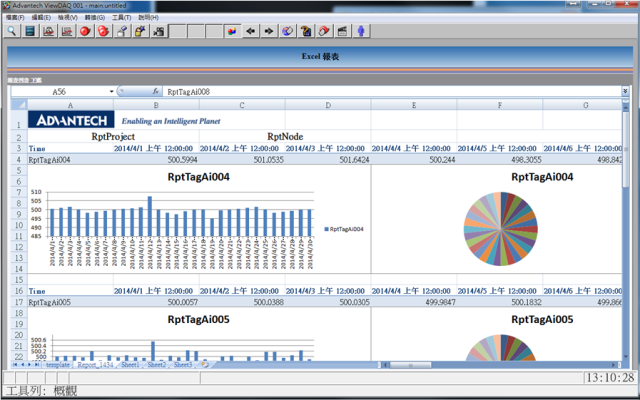

	Reporting / Excel Reporting	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
	Device Redundancy	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
	Support IPv6	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
	WebAccess Express	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
Web-enabled Integration	Video	Yes	Yes	Yes	Yes	Yes
