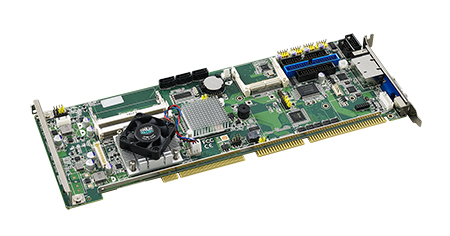

PCA-6012

Intel? 凌動? N455/D525 全長CPU卡, 支持VGA /雙GbE LAN

Main Features

超低功耗, 無風扇 N455 CPU，內存最大支持2 GB DDR3 800(只適用于 N SKU)
雙核高性能 D525 CPU，內存最大支持4 GB DDR3 800(只適用于 D SKU)
支持4 x RS-485 w/可選模塊，帶自動數據流控制
支持嵌入式軟件 APIs 和實用程序
數據表(PDF) 技術資料下載

規格表

		PCA-6012G2-00A1E	PCA-6012VG-00A1E
Form Factor	Form Factor	PICMG1.0	PICMG1.0
Processor System	CPU	Intel Atom D525	Intel Atom N455
	CPU TDP	Up to 13 W	Up to 6.5W
	Frequency	Up to 1.8 GHz	Up to 1.66 GHz
	Core Number	2	1
	L2 Cache	1MB	512KB
	BIOS	AMI 16 MBit	AMI 16 MBit
	Chipset	Intel ICH8M	Intel ICH8M
	Integrated Graphics	Yes	Yes
	FSB	-	-
Memory	Technology	DDR3 800/667 MHz	DDR3 667 MHz
	Capacity	Up to 4GB	Up to 2GB
	Socket	1 x 204-pin DDR3	2 x 204-pin DDR3
Display	Controller	Intel HD graphics Integrated	Intel HD graphics Integrated
	Graphic Memory	Shared with system memory up to 256MB	Shared with system memory up to 256MB
	Multiple Display	Dual	Single
	Display Interface	VGA: Up to 2048 x 1536 LVDS: Up to 1366 x 768	VGA: Up to 1400 x 1050
Expansion Interface	PCI	1	1
	ISA	1	1
	LPC	1	1
	SMBus	1	1
	I2C Bus	1	1
Ethernet	Controller	LAN1: Intel 82567V LAN2: Intel 82583V	LAN1: Intel 82567V
	Speed	10/100/1000 Mbps	10/100/1000 Mbps
	Connector	2 x RJ45	1 x RJ45
WatchDog Timer	Output	System Reset	System Reset
WatchDog Timer	Interval	Programmable 1~255 sec	Programmable 1~255 sec
I/O	SATA	3 x SATA II	3 x SATA II
	Compact Flash	1	-
	IDE	1	1
	Floppy	1	1
	USB2.0	9	8
	GPIO	8-bit	8-bit
	LPT	1	1
	COM Port	2 x RS232	2 x RS232
	PS/2 Keyboard/Mouse	1	1
	System Fan	1	-
	COM	-	1 x RS232
	Ethernet	2	1
	VGA	1	1
Power Requirement	Voltage	+12 V/+5 V/+3.3 V/+5 VSB/-12 V/-5 V	+12 V/+5 V/+3.3 V/+5 VSB/-12 V/-5 V
Power Requirement	Current	0.44A/3.71A/0A/0.15A/0A/0A	0.16A/2.81A/0A/0.13A/0A/0A
Environment	Operational Temperature	0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing)	0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing)
	Non-Operational Temperature	-40~ 85° C and 60° C @ 95% RH Non-Condensing	-40~ 85° C and 60° C @ 95% RH Non-Condensing
	Non-Operating Vibration	2 Grms	2 Grms
Physical Characteristics	Dimensions (LxW)	338 x 122 mm (13.3" x 4.8")	338 x 122 mm (13.3" x 4.8")
Physical Characteristics	Weight	0.5 kg	0.5 kg
Certification	EMC	CE, FCC	CE, FCC
